Drawn so it can be built.

Renders persuade; drawings build. Two complete sets: working drawings with their schedules, and a municipal submission drawn to Mumbai’s DCPR 2034 (the city’s development control regulations).

01

Clubhouse working drawings

A full set for a single-storey clubhouse: structural plan, setting-out, elevations and every schedule needed to build it.

  • Navi Mumbai
  • Academic
  • c. 2023

00Set data

KMA / CWD·23

Set
Clubhouse working drawings
Location
Navi Mumbai
Context
Academic, semester 6
Institution
Sir J.J. College of Architecture, Mumbai
Drawn in
AutoCAD

01Brief

KMA / CWD·23

A complete working set for a single-storey clubhouse: every dimension, every schedule, and enough description that a contractor could build it without asking.

02Sheets

KMA / CWD·23

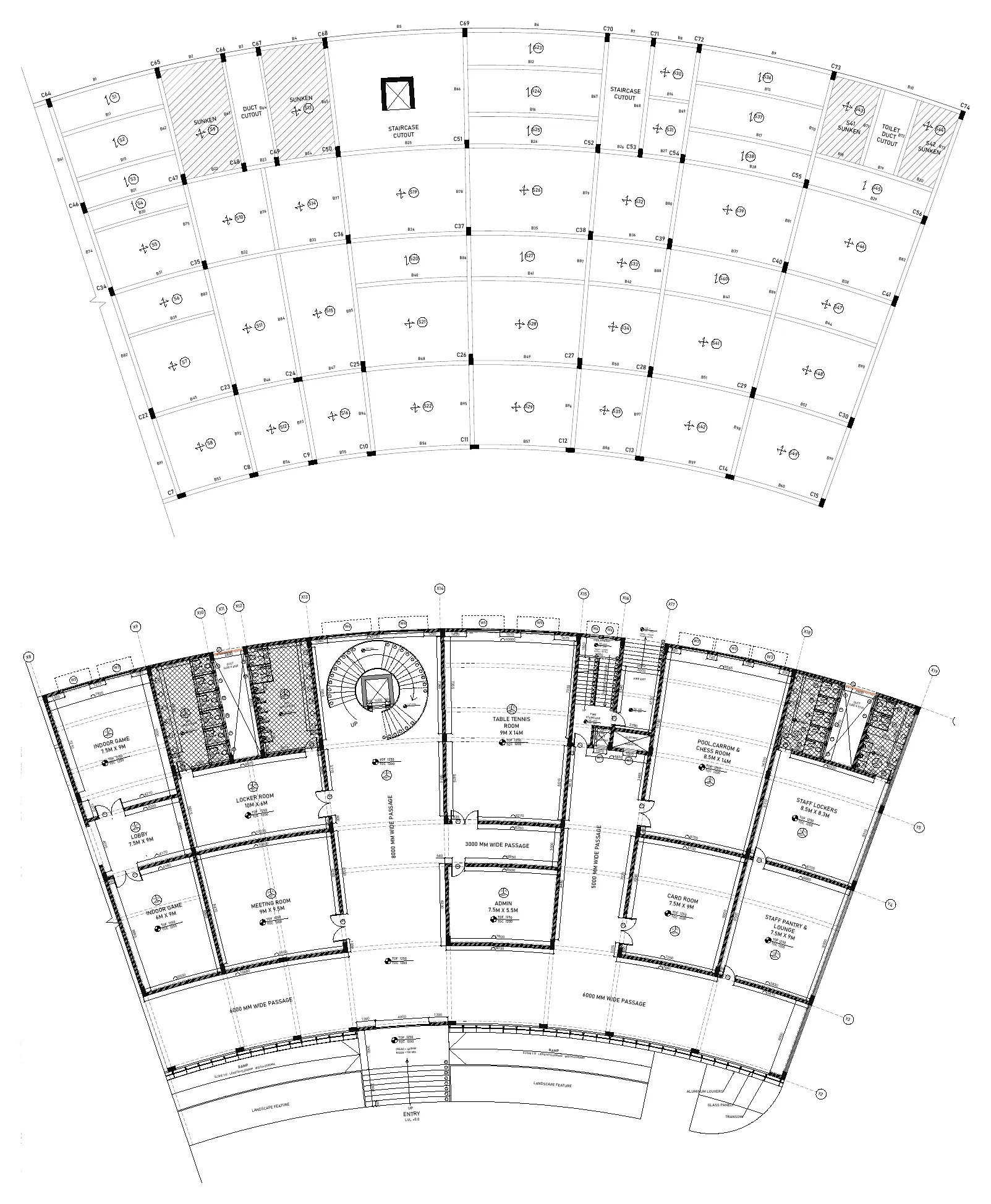

  • Structural plan showing numbered columns, beams and slabs, with column, beam and slab schedules and general notes on concrete grades and plaster
    Plate 07Structural plan: columns 300×600 and 300×750, 150 mm slabs, with full schedules

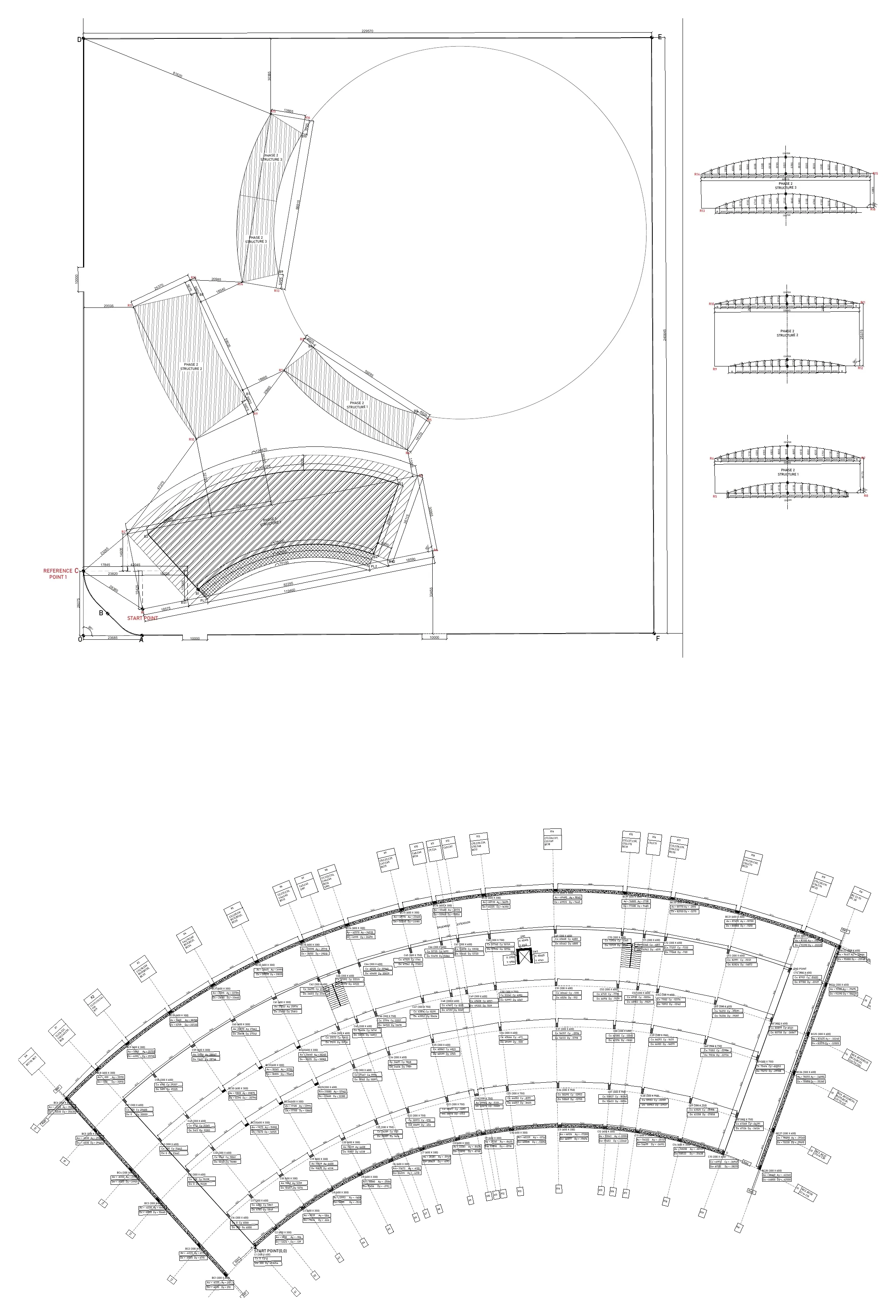

  • Setting-out plan with dimensioned grid lines and reference points for the curved building envelope
    Plate 08Setting-out plan: every point dimensioned from an imaginary rectangle

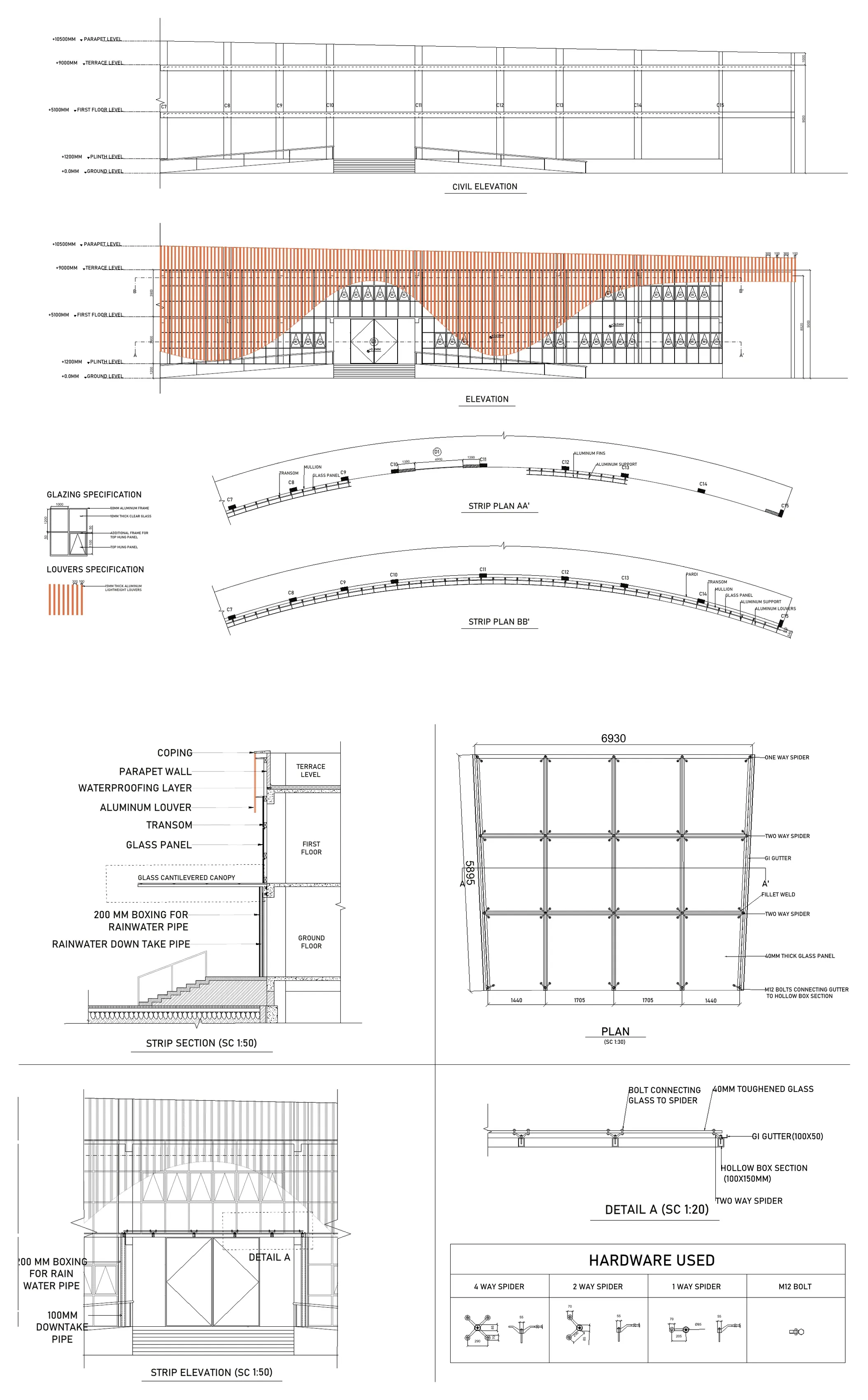

  • Civil elevation and strip plans with door and window schedules, glazing specification and louvre specification
    Plate 09Elevations, strip plans, and the door, window, glazing and louvre schedules

03Details

KMA / CWD·23

Two sheets at reading size: the level of resolution a contractor actually works from.

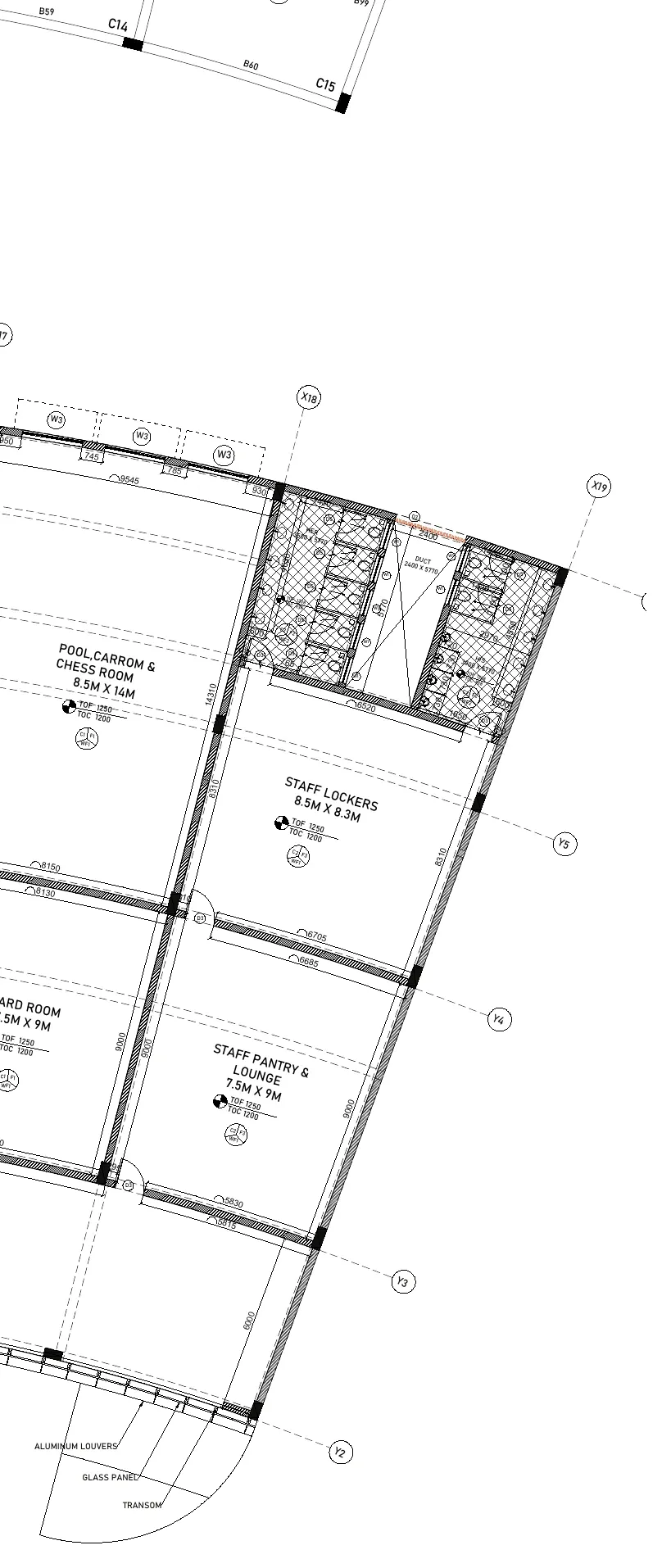

  • Enlarged portion of the structural plan showing dimensioned bays and schedules
    Detail 01Structural plan, enlarged

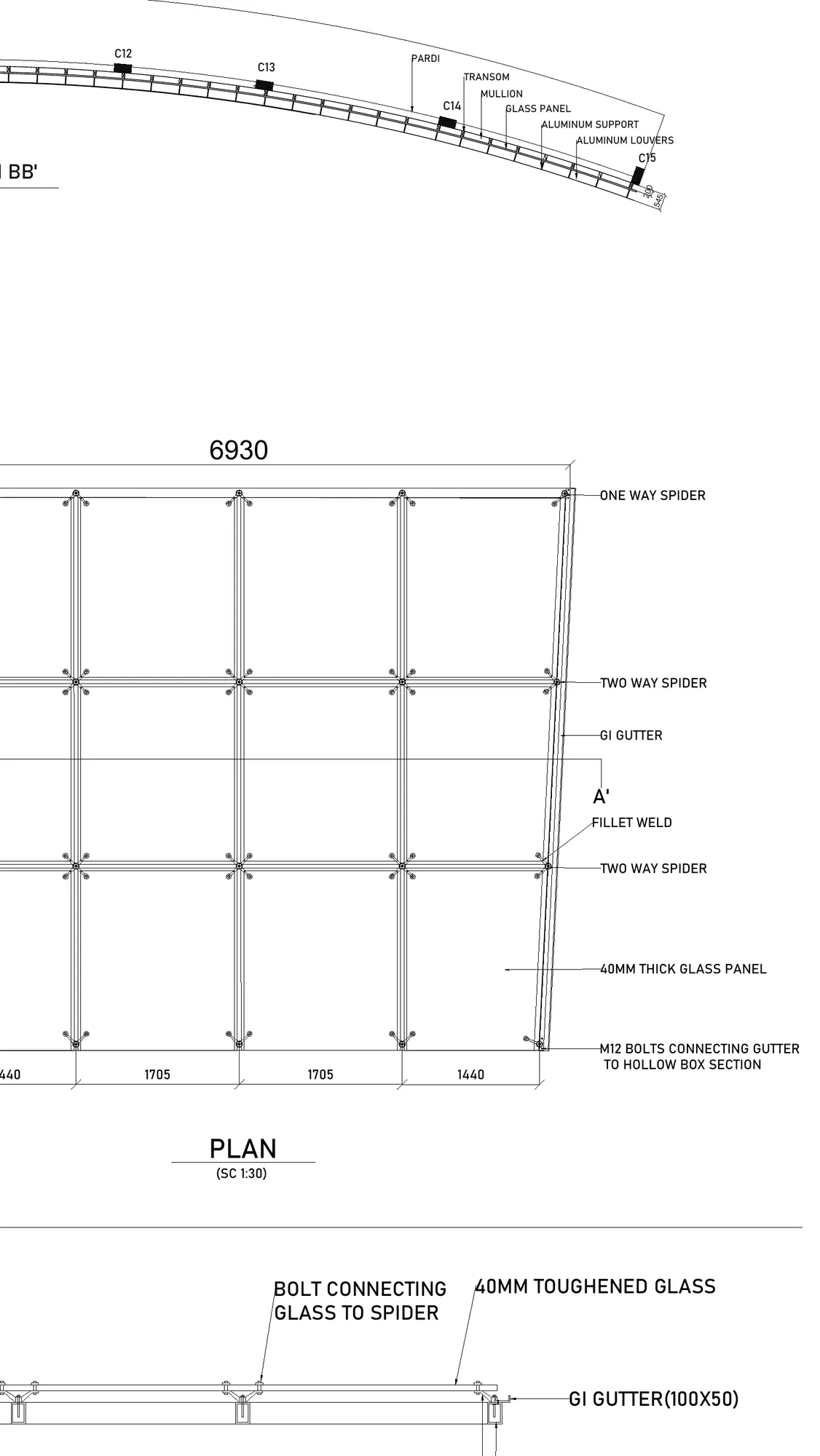

  • Glazing detail with a 50 mm aluminium frame, 10 mm clear glass, mullion, transom and top-hung panel
    Detail 02Glazing: 50 mm aluminium frame, 10 mm clear glass, spider fixings

Pages 46–49 of the portfolio PDF

02

Municipal drawings

A statutory submission set for a Bandra tower, drawn to DCPR 2034 and the formats the municipal corporation accepts.

  • Bandra, Mumbai
  • Academic
  • c. 2023

00Set data

KMA / MUN·23

Set
Municipal drawings
Location
Bandra, Mumbai
Context
Academic, semester 7
Institution
Sir J.J. College of Architecture, Mumbai
Drawn in
AutoCAD

01Brief

KMA / MUN·23

A full municipal submission for a proposed sixteen-storey development in Bandra, drawn to DCPR 2034 (Mumbai's Development Control and Promotion Regulations) in the form the MCGM (the city's municipal corporation) requires for approval: layout plans, sections, elevations, area statements and service details.

Statutory drawing is its own discipline. The geometry matters less than whether the open space, the refuge floors, the driveway widths and the certificates are all present, correct and in the right place on the sheet.

02Sheets

KMA / MUN·23

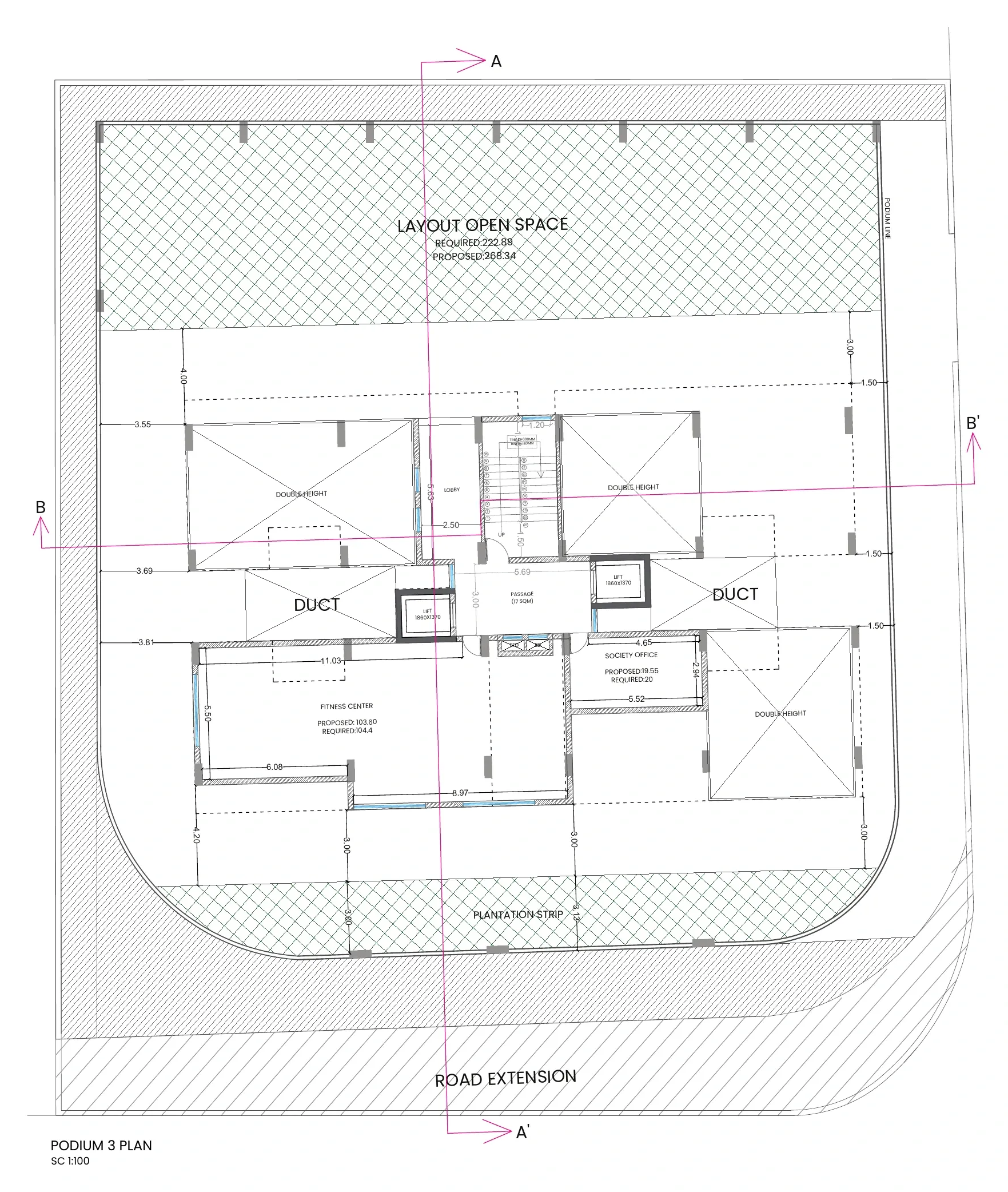

  • Podium level plan with the layout open space calculation, fitness centre, society office, lifts and double-height lobby
    Sheet 02Podium 3 plan: layout open space required 222.89 sq.m., proposed 268.34

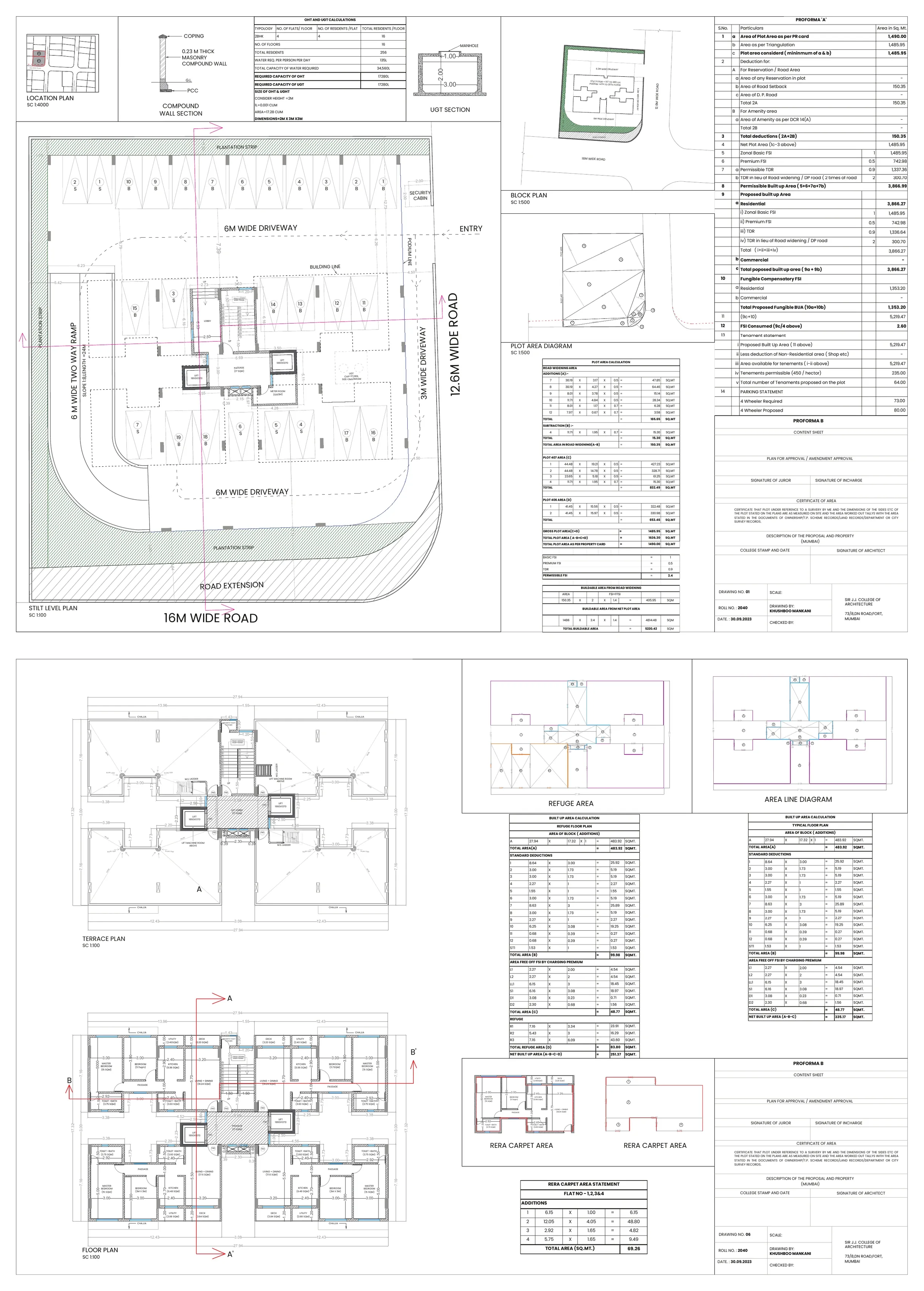

  • Full submission sheet combining the location plan, block plan, plot area diagram, unit plans and the certificate of area
    Sheet 01Location plan, block plan, plot area diagram and certificates

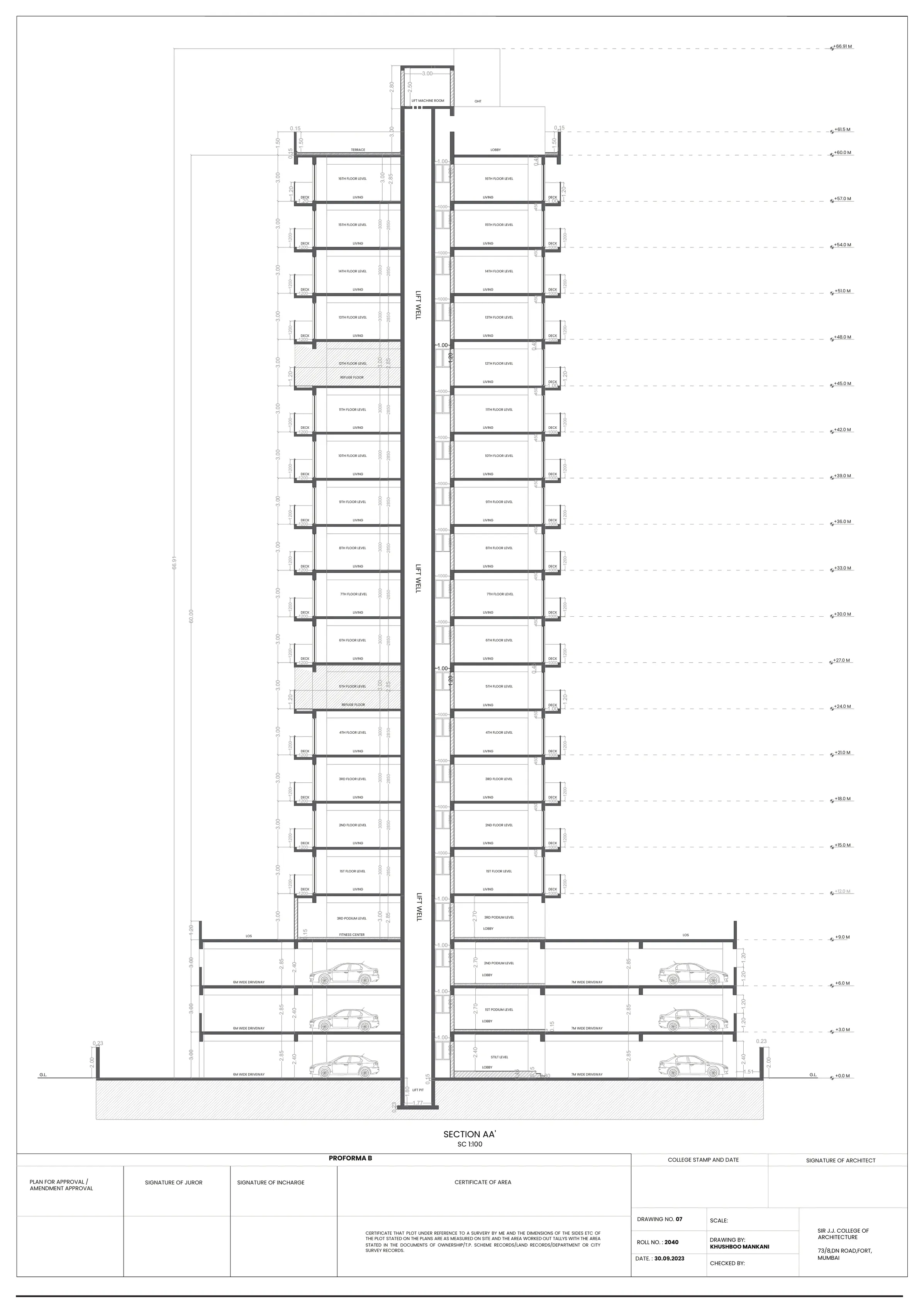

  • Section through the sixteen-storey tower showing every floor level, refuge floors, decks and the overhead tank
    Sheet 03Section: ground to +66.91 m, refuge floors at the 5th and 12th

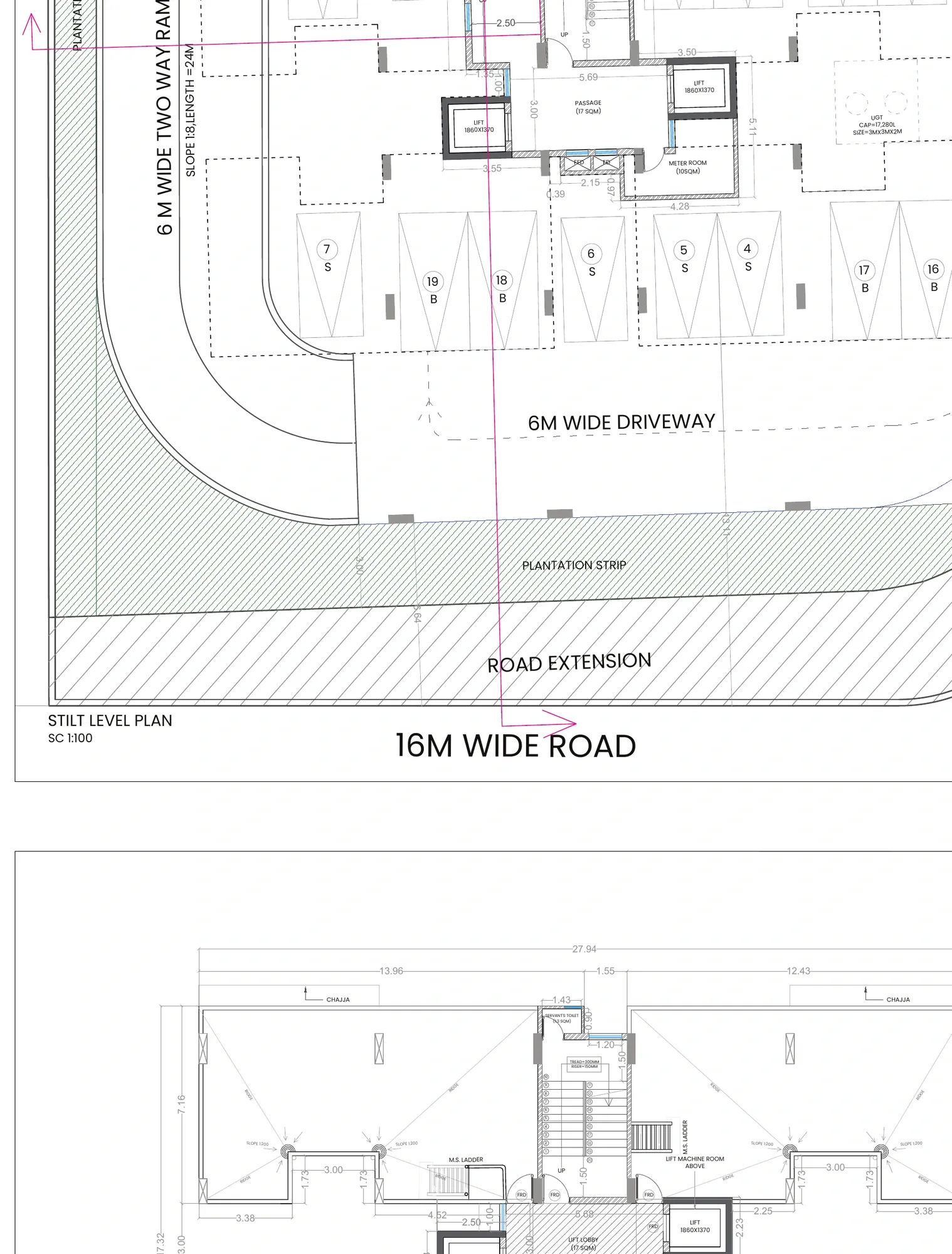

  • Enlarged block plan showing driveway widths, plantation strip, road extension and the stilt level
    Detail 01Block plan: driveway widths, plantation strip, road extension

03Area statement

KMA / MUN·23

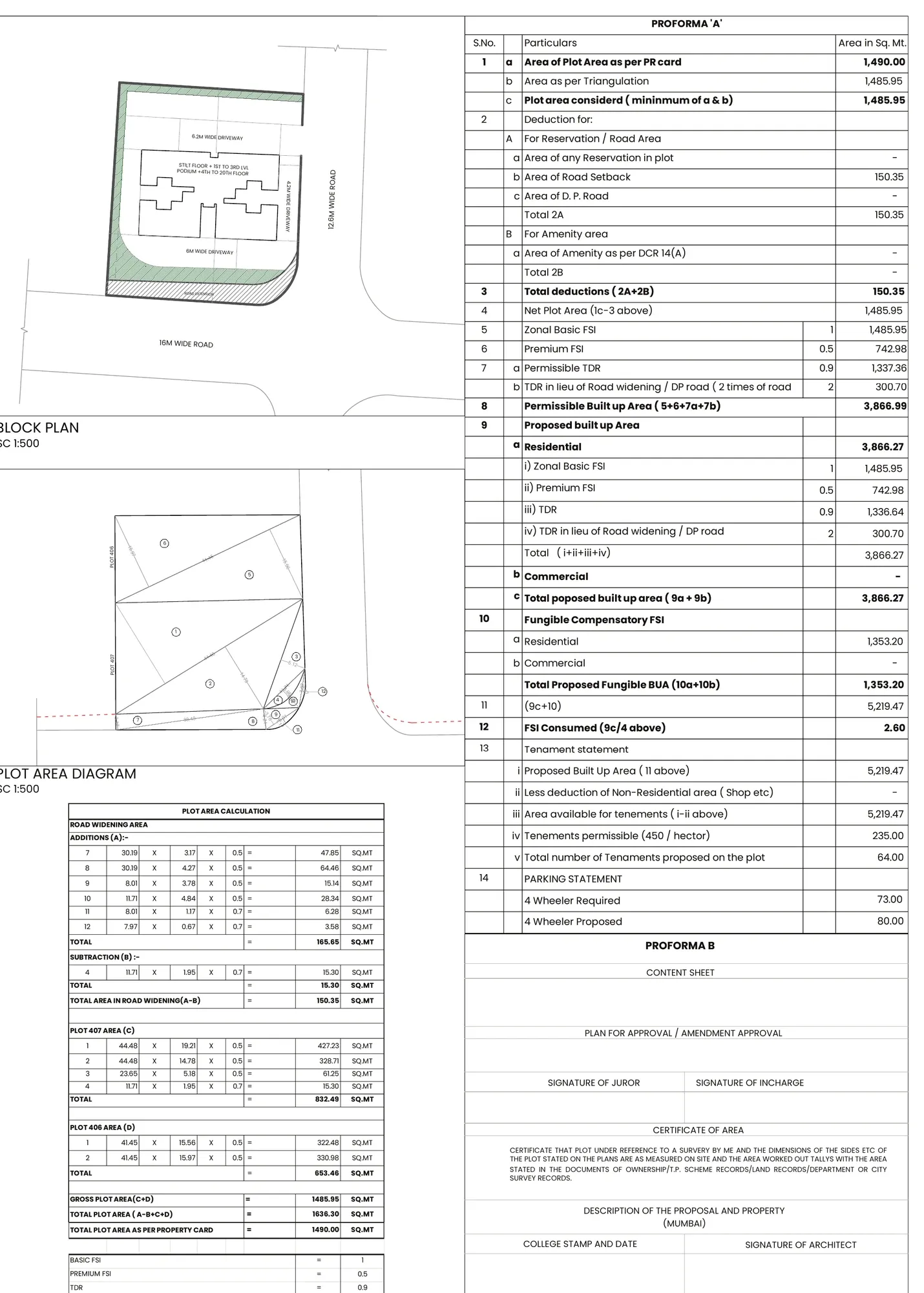

Area statement table listing plot area, deductions, net plot area, permissible and proposed built-up areas and parking provision
Detail 02The area statement: where a municipal submission is won or lost

Pages 50–53 of the portfolio PDF
